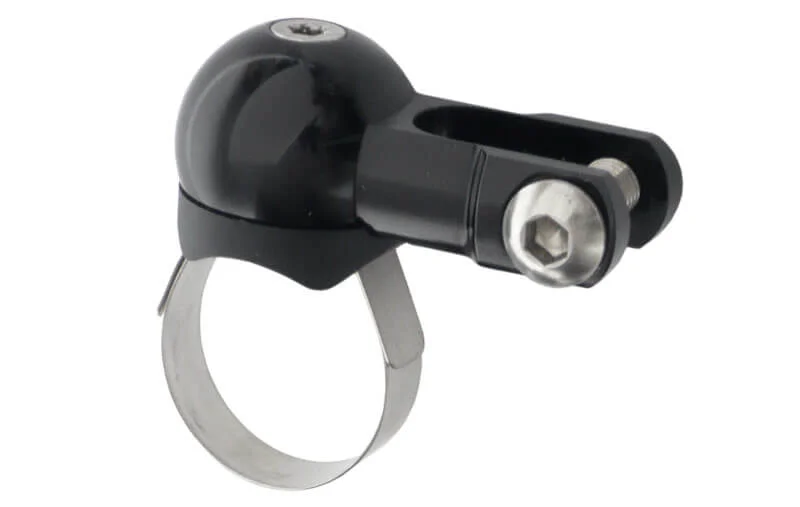

Bracket Schmidt delux

Headlight bracket for handlebar mount, design matching ideally well with Edelux. Adjustable around vertical axis.
Aluminium milled, for handlebars up to 31.8 mm

Part Numbers:

black anodised              75532                                  polished                         75531

Bracket Schmidt delux long

Headlight bracket for handlebar mount, design matching ideally well with Edelux. Adjustable around horizontal axis.
Aluminium milled, for handlebars up to 31.8 mm

Part Numbers:

black anodised                 75534                              polished                            75533

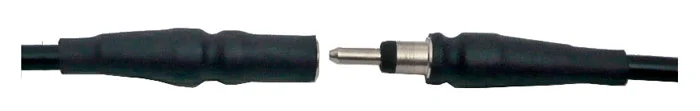

SON Coaxial Connector

2-pole push-in connection especially developed by SON for SON coaxial cable. Processing by means of soldering and heat shrinking (Link). Small outer diameter (6.6 mm).

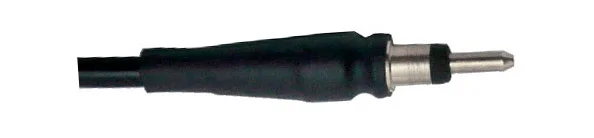

Male Connector              Part Number:     72600

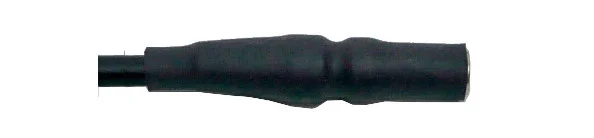

Female Connector           Part Number:      72601

Connector Set - males and female connectors            Part Number:             72610

Axle-Adapter 12 / 9 mm QR

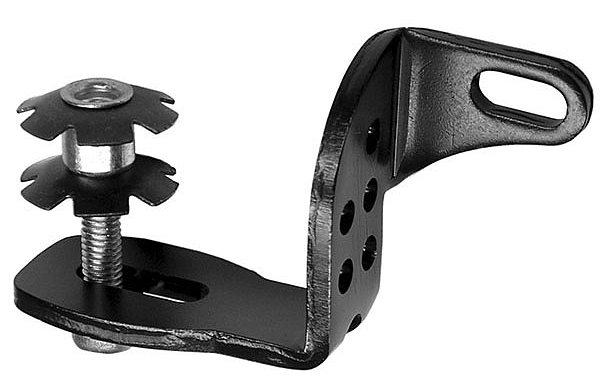

Bracket for suspension fork

Bracket handlebar mount

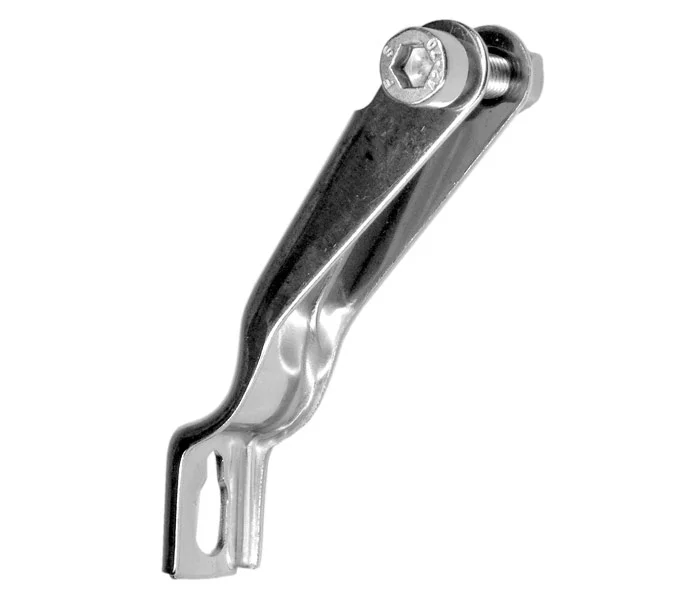

Bracket stainless

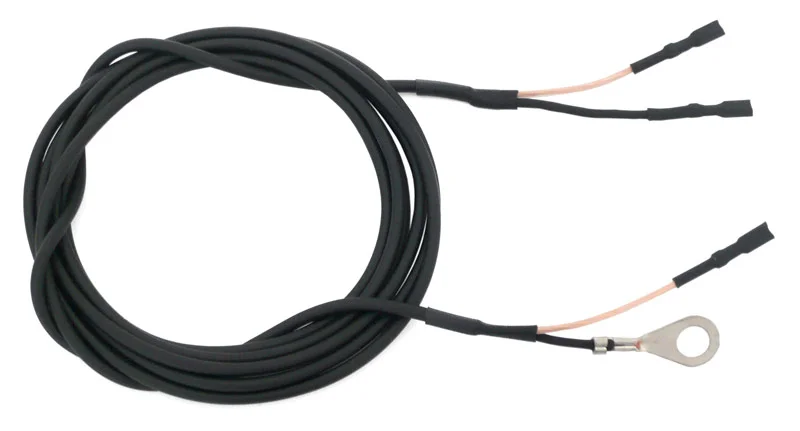

Coaxial Cable for Rear Light

190 cm cable, Outer Ø 3 mm.  Conductor 2 x 0.5 mm²

Part Numbers:

SON connections fitted                               72090                                    connections for rear light separate             72091
